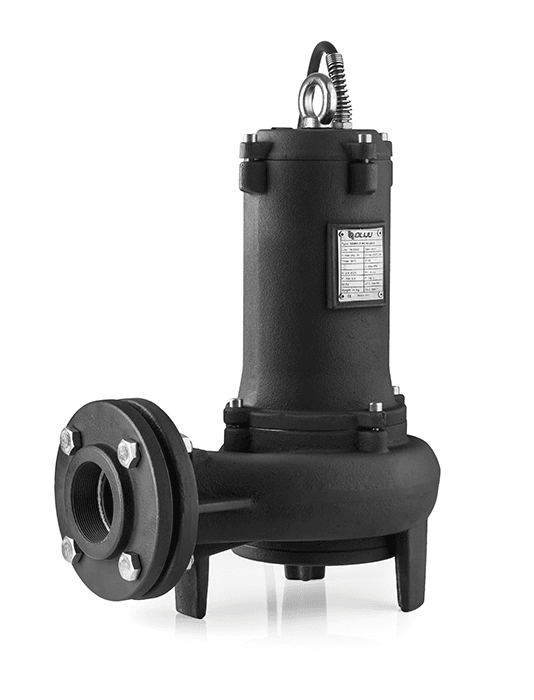

MC

Submersible Pumps to untreated wastewater

Characteristics

16 - 19m
Max. head

58 - 60m³/h
Max. flow

2.2 - 3kW
Motor power

50 - 65
Discharge size

Application

The electric pumps "MC" are particularly suitable for treatment of wastewater, industrial process water and raw sewage does not treated in municipal applications, public and industrial. The single-channel impeller permits passage of solids in the pump MC50 up to 50mm and at the pump MC65 up to 65mm, reducing the risk of clogging.

Installation

Permanent or transportable.
Single-Channel Impeller

Materials

Double seals, lip seals and reinforced SIC-SIC mechanical seal. Motor casing, pump body and open impeller in cast iron, 420 stainless steel shaft

Pumped liquid

Pumping of sewage and industrial water. Max. liquid temperature: 35°C.

Motor

Fully submersible, pressure tight electric motor. Stainless steel motor- and pump housing. Insulation class F. Motor protection IP 68. Thermal sensors imbedded in the motor winding.

Features

Power cable: 20 m neoprene.
Immersion depth of 10 m.
Ideal for installation with guide rail.

Performance

Created with Highcharts 6.0.3m³/hmChart context menuMCMC0510152025303540455055606570753.67.210.814.41821.625.228.832.43639.643.246.850.45457.661.264.868.47275.602.557.51012.51517.520

Specification

Serie Kw Power Capacitor Passage DNC QMax HMax Palette
MC 50.220.32.24.2050DN 505816
MC 65.300.334.8065DN 65601975 un
