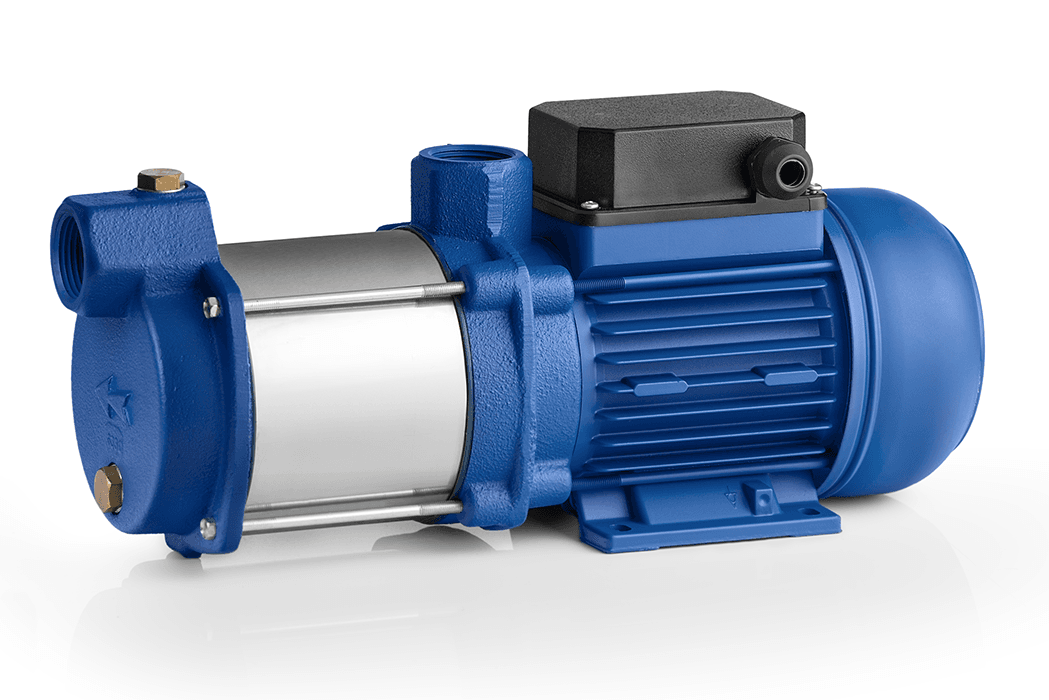

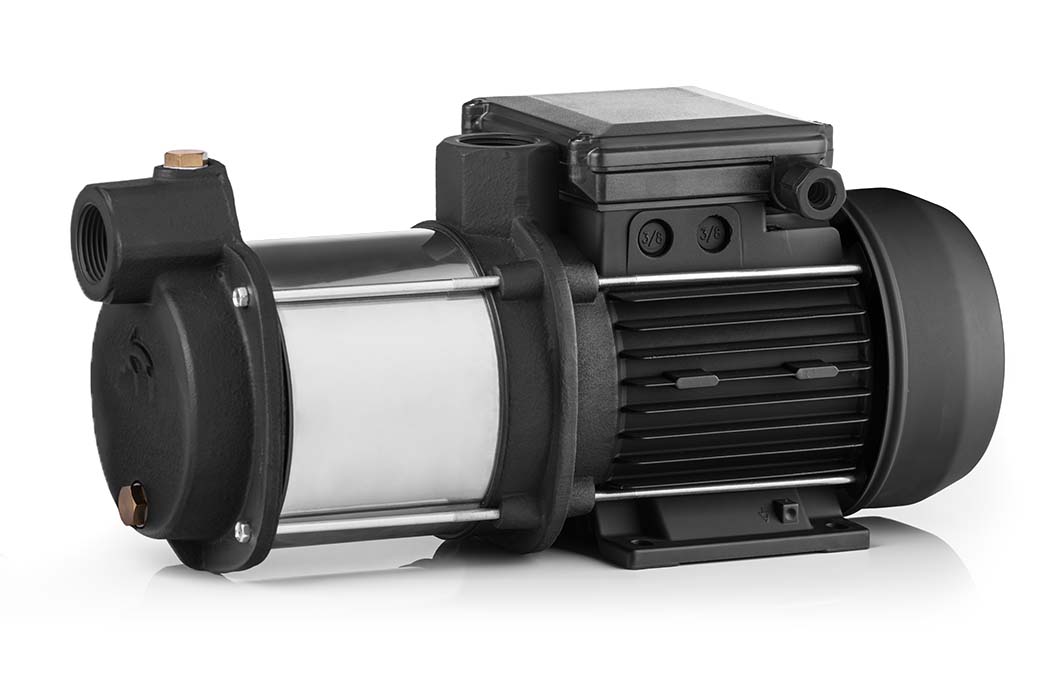

Cmh

Characteristics

21 - 88m
Max. head

3.9 - 22m³/h
Max. flow

0.37 - 3kW
Motor power

G 1 - 1½ F
Discharge size

Application

CMH pumps are suitable for use with clean water. These pumps are widely used in domestic applications such as the distribution of water in combination with small and medium sized pressure tanks, and for the irrigation of gardens and orchards, etc.

Installation

The pump should be installed in an enclosed environment or sheltered from inclement weather.

Materials

Pump body and pusher in cast iron. Exterior shell and impeller in stainless steel (AISI304). Shaft in stainless steel (AISI 416). Diffusor in noryl with fiber-glass.

Pumped liquid

Clean water.
Max. liquid temperature: 35°C.

Motor

Externally ventilated. Mechanical seal (carbon-graphite). Protection IP44. Class F insulation.

Features

Max. starts/hour: 30

Performance

Caudal

pression

Specification

Serie	Kw	Power	Capacitor	DNC	QMax	HMax	Palette
Cmh 12.37.1	0.37	2.2	10	1"	3.9	20	100 un
Cmh 12.37.3	0.37	1.1	0	1"	3.9	20	100 un
Cmh 13.37.1	0.37	2.6	12	1"	3.9	30	100 un
Cmh 13.37.3	0.37	1.2	0	1"	3.9	30	100 un
Cmh 14.60.1	0.6	3.45	14	1"	3.9	40	100 un
Cmh 14.60.3	0.6	1.4	0	1"	3.9	40	100 un
Cmh 15.60.1	0.6	3.9	18	1"	3.9	50	100 un
Cmh 15.60.3	0.6	1.6	0	1"	3.9	50	100 un
Cmh 16.90.1	0.9	4.9	20	1"	3.9	59	100 un
Cmh 16.90.3	0.9	1.9	0	1"	3.9	59	100 un
Cmh 23.75.1	0.75	4.2	16	1"	6.9	38	75 un
Cmh 23.75.3	0.75	1.8	0	1"	6.9	38	75 un
Cmh 24.80.1	0.8	5.4	16	1"	6.9	52	75 un
Cmh 24.80.3	0.8	2.3	0	1"	6.9	52	75 un
Cmh 24.80.160Hz	0.8	5.4	16	1"	6.9	52	75 un
Cmh 25.120.1	1.2	7.2	20	1"	7.2	67	66 un
Cmh 25.120.3	1.2	2.8	0	1"	7.2	67	66 un
Cmh 26.120.1	1.2	7.8	25	1"	7.2	79	66 un
Cmh 26.120.3	1.2	3.5	0	1"	7.2	79	66 un
Cmh 27.150.1	1.5	8.6	25	1"	7.2	91	66 un
Cmh 27.150.3	1.5	3.8	0	1"	7.2	91	66 un
Cmh 33.90.1	0.9	6.2	25	1" 1/4	10.5	41	45 un
Cmh 33.90.3	0.9	3.7	0	1" 1/4	10.5	41	45 un
Cmh 34.110.1	1.1	8.9	35	1" 1/4	10.5	50	45 un
Cmh 34.110.3	1.1	3.9	0	1" 1/4	10.5	50	45 un
Cmh 35.150.1	1.5	11.2	40	1" 1/4	10.5	66	40 un
Cmh 35.150.3	1.5	4.6	0	1" 1/4	10.5	66	40 un
Cmh 36.220.1	2.2	12	50	1" 1/4	10.5	81	40 un
Cmh 36.220.3	2.2	5	0	1" 1/4	10.5	81	40 un
Cmh 43.150.1	1.5	11	40	1" 1/2	22	36	40 un
Cmh 43.150.3	1.5	3.6	0	1" 1/2	22	36	40 un
Cmh 44.220.1	2.2	12	50	1" 1/2	22	46	35 un
Cmh 44.220.3	2.2	4.2	0	1" 1/2	22	46	35 un
Cmh 45.300.3	3	6	0	1" 1/2	22	57	40 un
