Cfa2

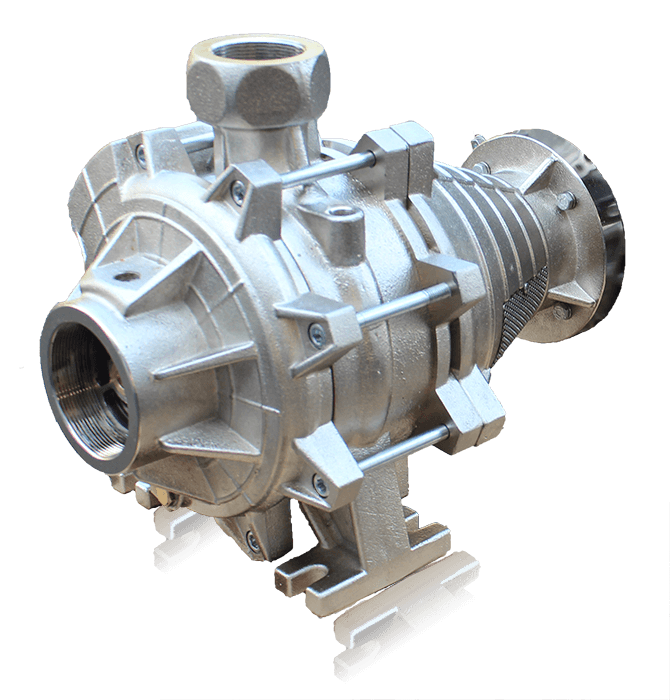

Centrifugal pump for coupling

Characteristics

130m
Max. head

42m³/h
Max. flow

kW
Motor power

2"
Discharge size

Application

CFA2 are centrifugal pump of double turbine and for engagement, ideal for applications requiring the use of motor fuel. Ideal for domestic, agriculture, industrial uses.

Installation

For coupling with galvanized steel cardan

Materials

Galvanized steel cardan, mechanical seal (SIC/SIC DIN24960), pump body in aluminum, painted or as option nickel plated, turbine brass, shaft in stainless steel (AISI 416), grid protection in Stainless Steel.

Pumped liquid

Clean water.
Max. liquid temperature: 35°C.

Motor

Not included. Gasoline 18cv.

Features

Max. starts/hour: 30

Performance

Specification

Serie Kw Power Capacitor Passage DNC QMax HMax Palette
