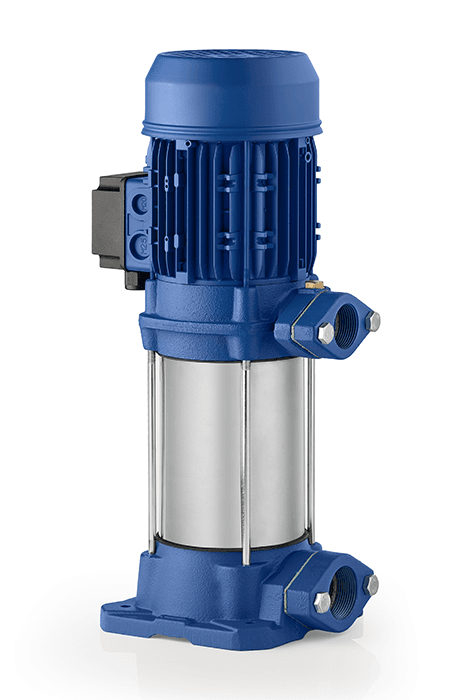

Cmv

Vertical Multistage Centrifugal Pumps

Characteristics

40 - 103m
Max. head

7.2 - 22m³/h
Max. flow

0.8 - 4kW
Motor power

G 1 - 1¼ F
Discharge size

Application

CMV pumps are suitable for use with clean water. The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets and for pressure boosting.

Installation

The pump should be installed in an enclosed environment or sheltered from inclement weather.

Materials

Pump body and pusher in cast iron. Exterior shell and impeller in stainless steel (AISI304). Shaft in stainless steel (AISI 416). Diffusor in noryl with fiber-glass.

Pumped liquid

Clean water.
Max. liquid temperature: 35°C.

Motor

Externally ventilated. Mechanical seal (carbon-graphite). Protection IP44. Class F insulation.

Features

Max. starts/hour: 30

Performance

Specification

Serie Kw Power Capacitor Passage DNC QMax HMax Palette
